Product Visualising: In The Dog Room

Product Visualising: In The Dog Room

3 July, 2017
by Daragh Doyle

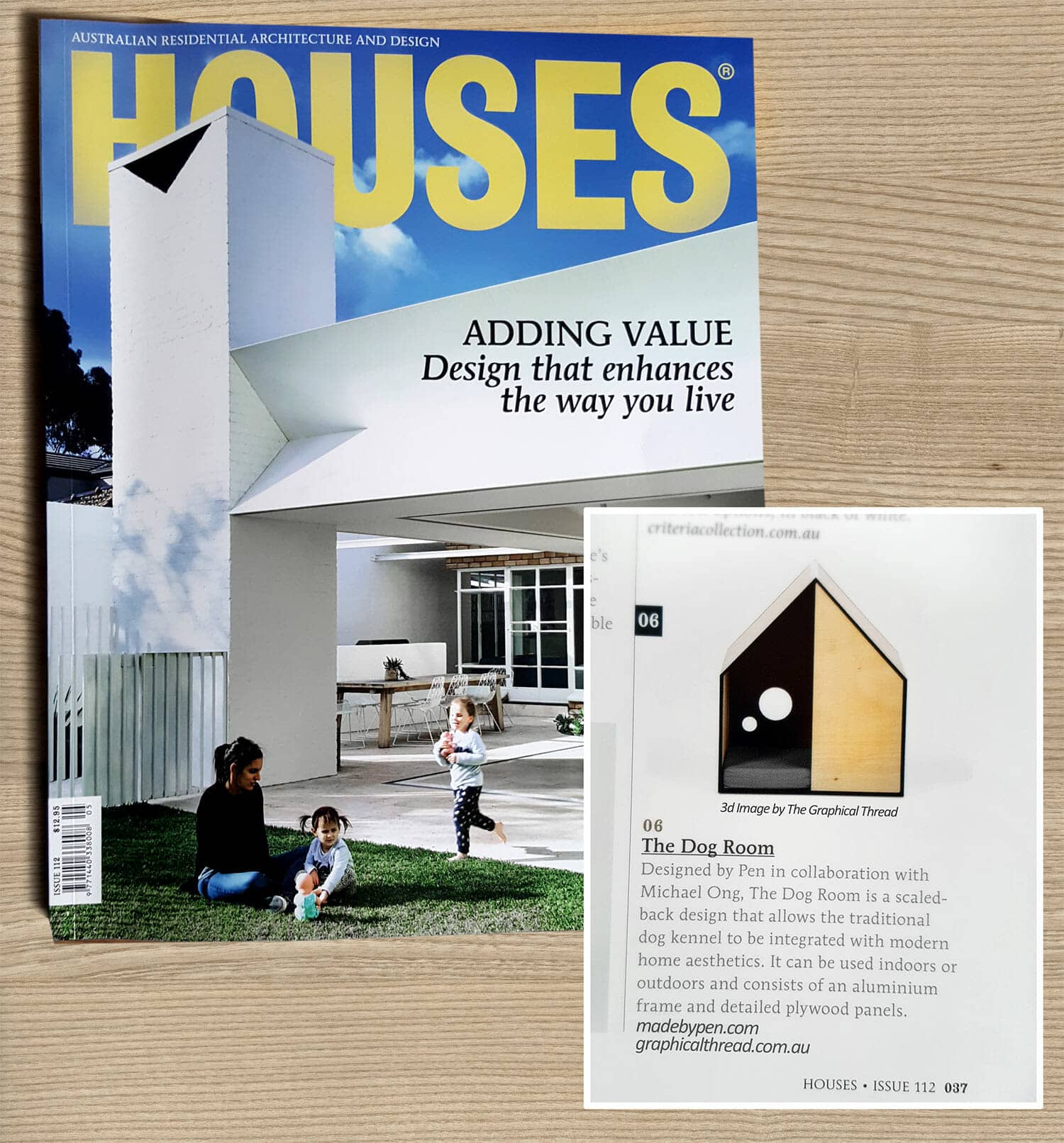

The Graphical Thread are delighted to be featured in Houses magazine.

The Graphical Thread In Houses Magazine
The Graphical Thread In Houses Magazine

When designers PEN asked us to visualise their latest product we couldn’t wait to get started.

The object of our visualisations for this minimalist designed dog house was to create images that could be used in online marketing prior to the first prototype being completed.

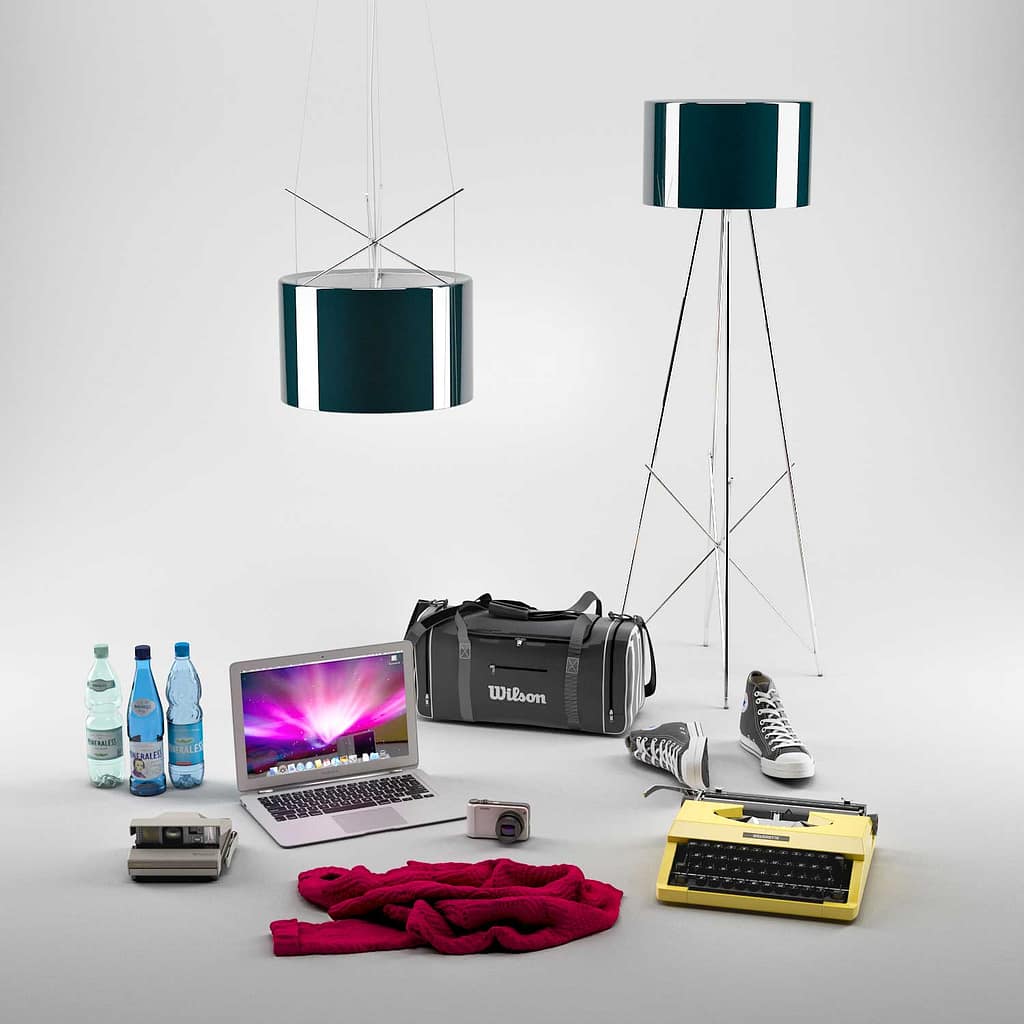

Below are some examples of products taken from our libraries and put into our 3d studio scene to confirm that the client is happy with the lighting set up.

Products In Our 3d Studio
Products In Our 3d Studio

Clearly our studio is set up correctly using basic studio lighting principals (key light, fill light, background lights and accent lights).

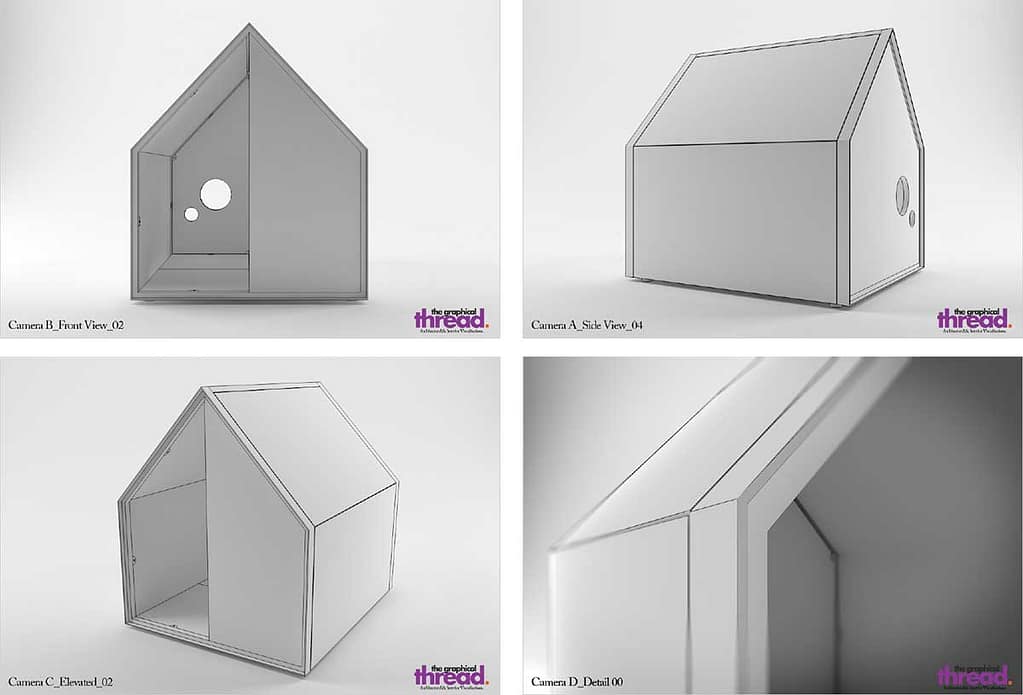

Once we received the 2d cad plans for the dog house we began to create and material up the 3d model. Next we needed to create some (low res) interesting camera angles as requested by our client for sign off.

Camera Angles
Camera Angles

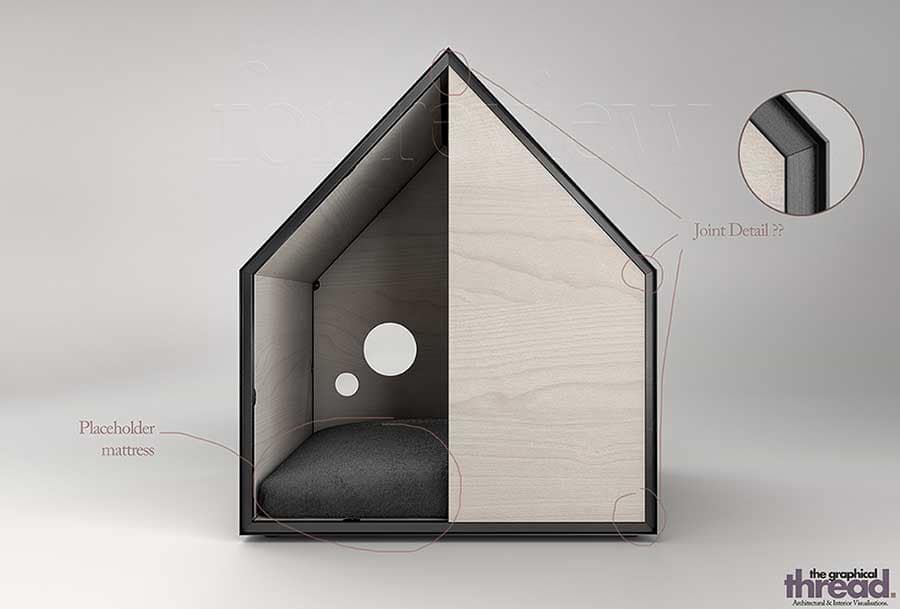

At this point we can get down to some questions about details . . .

Details
Details

Once approved we can begin to render at a higher resolution and thus creating the final product (pardon the pun!)

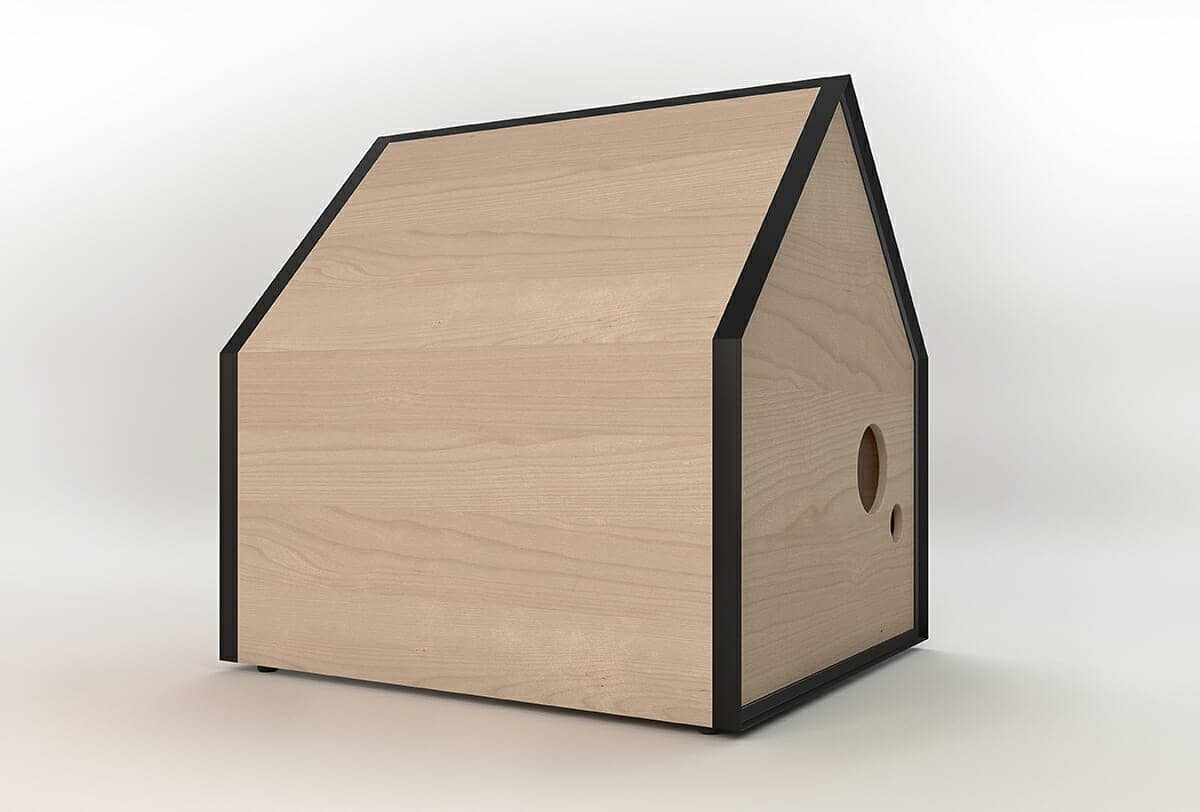

Final (Side View)
Final (Side View)

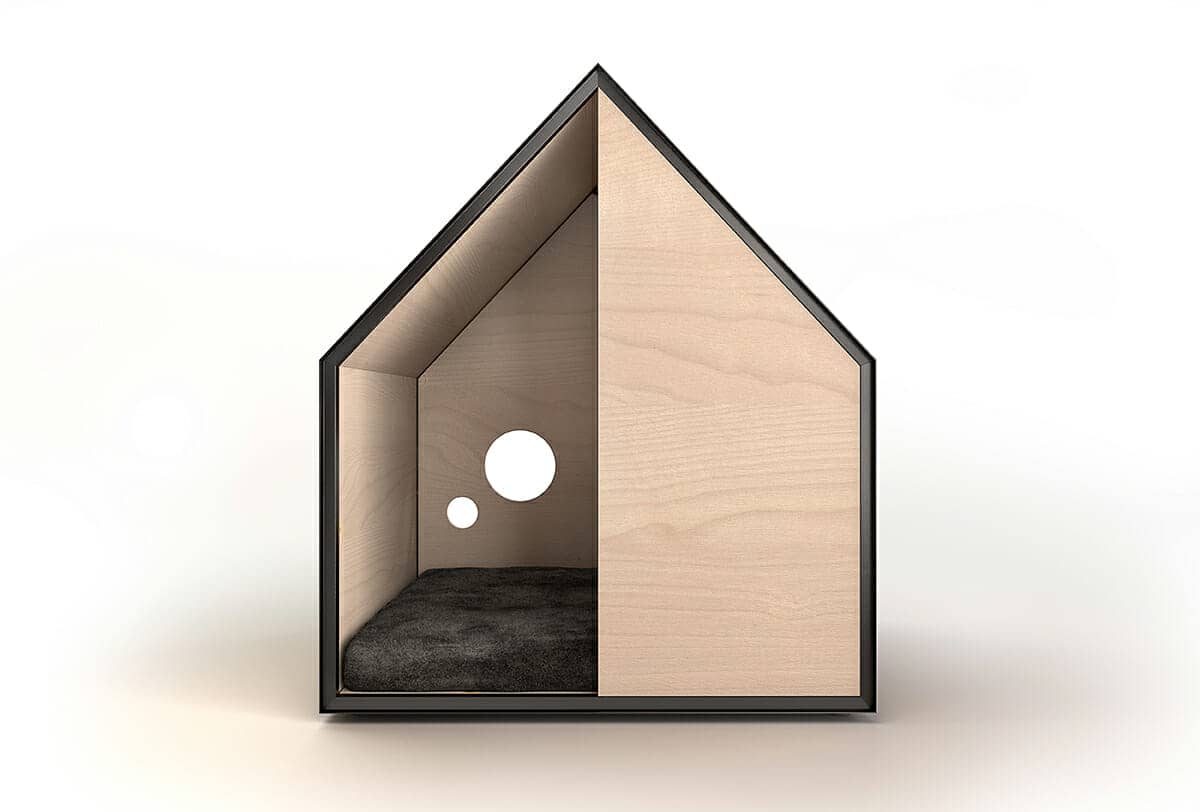

Final (Front View)
Final (Front View)

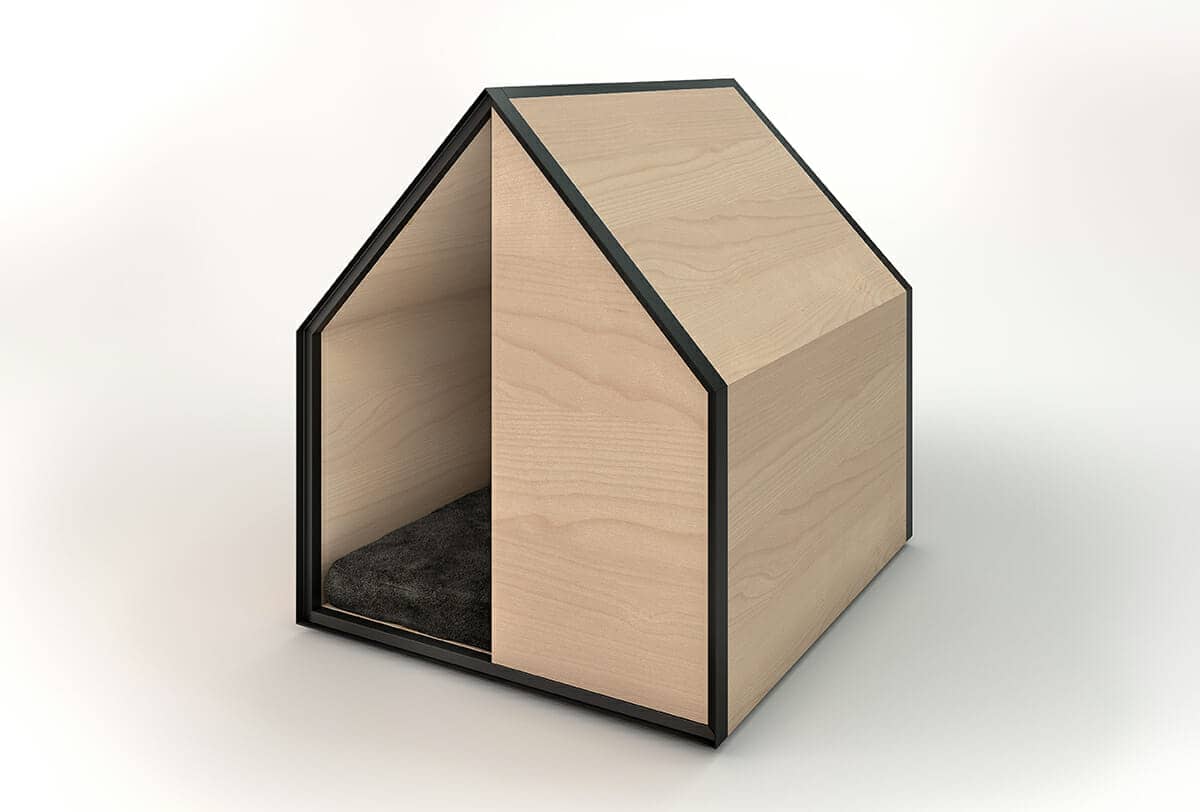

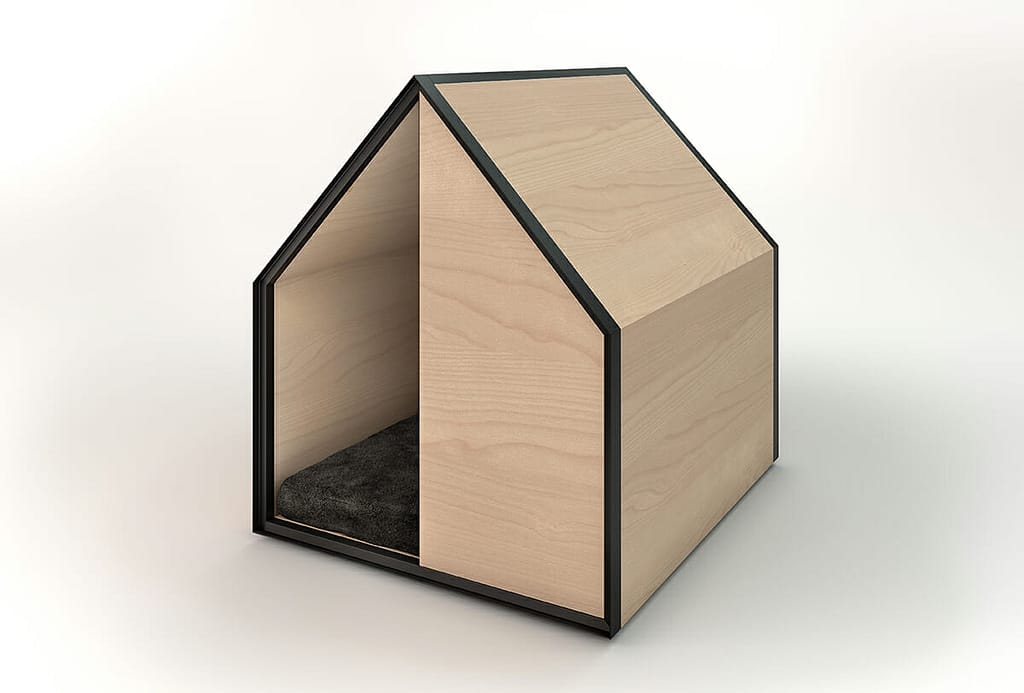

Final (Evevated)
Final (Evevated)

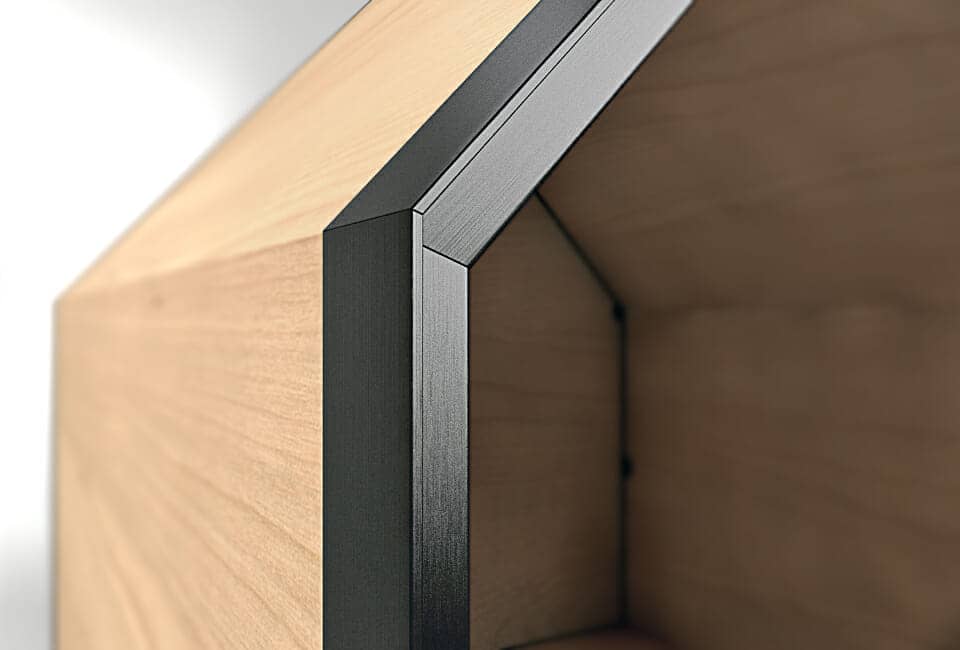

Final (Detail)
Final (Detail)

Check out this product from the Made by Pen website:
Made By Pen Website
